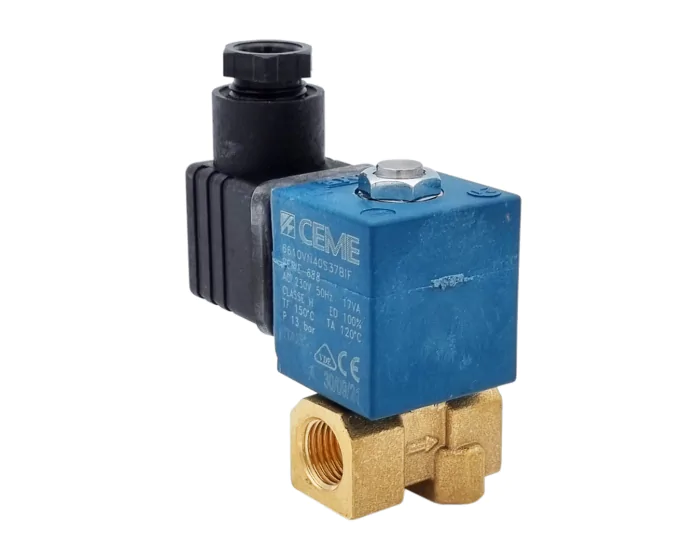

The solenoid valve type EV 66 is a 2/2 way direct acting brass solenoid valve, normally closed (NC), all voltages.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 9 |
| Minimum delta P (bar) | 0 |
| Coil type | B6 |
| Connector | T30 |
| DN | DN6 - 1/8'' |
| Face to Face (mm) | 35.0 |
| Fluid | Water / Air / Neutral gases |
| Protection index (IP) | IP 65 |
| Gasket | FKM |
| Kv (m³/h) | 0.17 |
| Body material | Brass CW617N |
| Position | Normally closed |
| PS (bar) | 9 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 150 |
| TS min (°C) | -10 |
| Solenoid valve type | Direct acting |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N 230 V AC DN6 - 1/8'' | 083694N | S1004771 |
€21.93
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V AC DN6 - 1/8'' | 083695N | S1004772 |
€21.93
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V DC DN6 - 1/8'' | 083696N | S1004773 |
€27.29
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 12 V DC DN6 - 1/8'' | 083697N | S1004774 |
€27.29
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 230 V AC DN8 - 1/4'' | 083700N | S1004775 |
€21.93
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V AC DN8 - 1/4'' | 083701N | S1004776 |
€21.93
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V DC DN8 - 1/4'' | 083705N | S1004777 |
€27.29
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN8 - 1/4'' 12 V DC | 083706N | S1004778 |
€27.29
(excl. btw)
|
add to cart |
